产品介绍

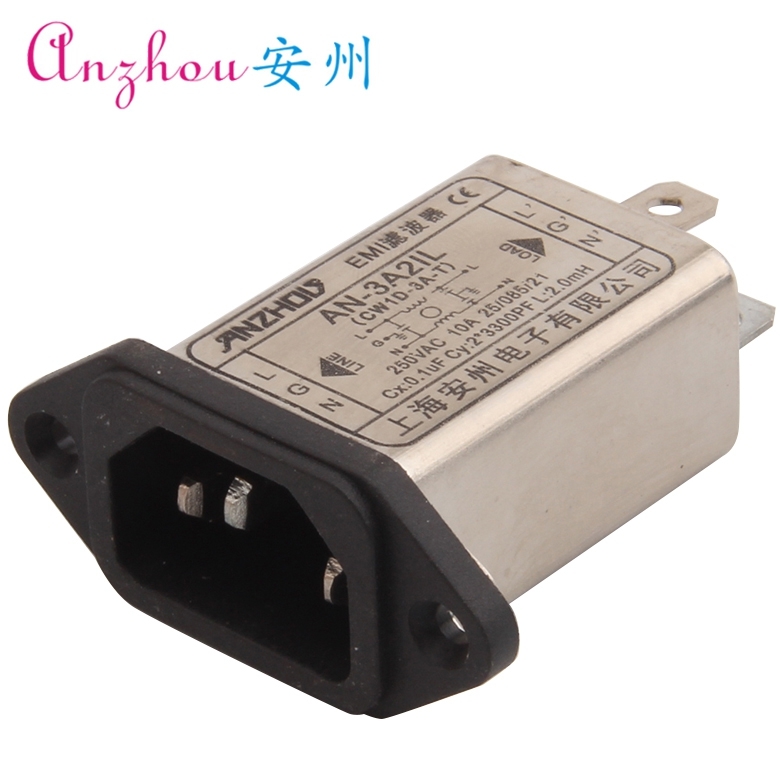

常规通用单相滤波器，价格优惠，安装简单;
General single phase filter,low price,easy to install
高频抑制性能良好，补充基板滤波电路高频性能不足
Excellent interference-supression for high frequency
低泄露电流，高品质元件，性能有保证。
Low leakage current and high quality components ensure the safety and reliability of filters
通用于电子设备，仪器仪表，医疗电子等
Available for electronic equipments,instruments,electronic medical devices and so on
规格表 Specification
| 滤波器型号 Type NO | 额定电流@40℃ Rated current | 额定电压 Rated current | 绝缘电阻 Insulation Resistance | 泄漏电流 Max. Leakage |
| AN-1A2IL | 1A | 250V AC | ≥500MΩ | ≤0.5mA |
| AN-3A2IL | 3A | 250V AC | ≥500MΩ | ≤0.5mA |
| AN-6A2IL | 6A | 250V AC | ≥500MΩ | ≤0.5mA |
| AN-10A2IL | 10A | 250V AC | ≥500MΩ | ≤0.5mA |
技术参数 Technical Speci fications
| 额定电压 Rated Voltage | 250VAC |
| 工作频率 Operating Frequency | 50/60Hz |
| 额定电流 Rated Current | 1-10A |
| 耐压试验(一分钟） Test Voltage(1min) | 1500VDC 线与线(Line/LINE) 1750VAC 线与地(Line/Ground) |
| 气候类别 Cl imat ic Category | 25/085/21 |
典型插入损耗： (50Ω测试系统）Typical Insertion Losses: ( Measured in 50Ω system)
--共模(Common Mode) -- 差模(Differential Mode)
| 滤波器型号 | 共模衰减（Comm.Mode)-in Mhz | 差模衰减（Diff.Mode)-in Mhz | ||||||||||
| PART number | 0.15 | 0.5 | 1.0 | 5.0 | 10 | 30 | 0.15 | 0.5 | 1.0 | 5.0 | 10 | 30 |
| AN-1A2IL | 26 | 35 | 38 | 41 | 42 | 37 | 9 | 19 | 25 | 41 | 39 | 34 |
| AN-3A2IL | 20 | 27 | 31 | 38 | 38 | 41 | 8 | 19 | 25 | 40 | 40 | 36 |
| AN-6A2IL | 13 | 22 | 27 | 38 | 40 | 36 | 4 | 10 | 15 | 36 | 36 | 30 |
| AN-10A2IL | 11 | 20 | 25 | 35 | 36 | 32 | 2 | 8 | 12 | 35 | 35 | 30 |
